Heavy-Duty Grass Reinforcement Mesh – Professional Car Park & Lawn Protection

Premium grass reinforcement mesh engineered for UK conditions. Protects grass surfaces from rutting, erosion, and compaction while maintaining natural appearance. Supports vehicles up to 2.5 tonnes with UV-stabilised HDPE construction guaranteed for 10+ years.

Professional Performance Features

2.5 Tonne Load Capacity: Supports cars, vans, golf buggies, and light commercial vehicles without rutting or soil compaction – ideal for overflow car parks and event spaces
UV-Stabilised HDPE Construction: High-density polyethylene won't degrade in British weather – guaranteed for 10+ years of outdoor use without brittleness or breakdown

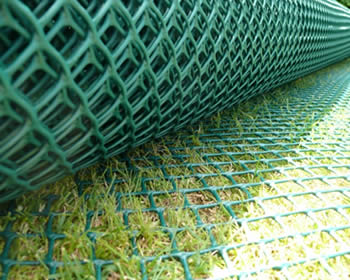

Natural Grass Integration: 25mm x 25mm grid allows grass roots to intertwine naturally, creating stable, load-bearing surface that looks great year-round
Prevents Rutting & Erosion: Distributes vehicle weight evenly across soil structure – eliminates muddy ruts, wheel tracks, and erosion even after heavy rainfall
Easy Installation: Lightweight roll format installs quickly without specialist equipment – one person can lay 60m² in under 2 hours
Maintains Drainage: Open mesh structure allows natural water drainage and air circulation – grass remains healthy without waterlogging
Mower-Friendly Design: Sits just below grass height once established – mow as normal without damage to equipment or mesh

Technical Specification

Property	Specification
Material	High-Density Polyethylene (HDPE) – UV stabilised
Roll Dimensions	2m wide x 30m long
Coverage Area	60 m² per roll
Mesh Aperture	25mm x 25mm (square grid)
Thickness	4mm
Weight	650 g/m² (39kg per roll)
Load Capacity	2.5 tonnes per metre
Colour Options	Green or Black
UV Resistance	10+ year warranty against UV degradation
Temperature Range	-40°C to +80°C
Drainage	100% permeable – maintains natural drainage
Installation	U-pins every 500mm (100 pins recommended per roll)

Professional Installation Guide

Ground Preparation: Remove debris, stones, and sharp objects. Level surface using rake or levelling board. Fill any depressions or holes with topsoil. Ensure good drainage – standing water will prevent grass growth.
Soil Condition: Ideal installation on established grass or freshly seeded area. Soil should be firm but not compacted. If installing on bare soil, seed or turf after mesh installation.
Roll Out Mesh: Unroll mesh across prepared area. For multiple rolls, overlap edges by 50-100mm to prevent gaps. Ensure mesh lies flat without wrinkles or folds.
Secure with U-Pins: Insert U-pins every 500mm along edges and joins. Use 100 pins per 60m² roll minimum. On slopes or high-traffic areas, increase pin density to every 300mm.
Grass Establishment: If installing over existing grass, allow 4-6 weeks for roots to grow through mesh before heavy use. If seeding, apply grass seed at 35-50g/m², water regularly, and allow 8-10 weeks establishment before vehicle traffic.
Top Dressing (Optional): Apply 10-15mm layer of sandy loam topsoil over mesh to accelerate grass growth and improve appearance. Brush into mesh apertures.
Initial Maintenance: Keep area well-watered during establishment period. Mow when grass reaches 75-100mm height. Avoid heavy traffic until grass is fully established through mesh.

Typical Applications

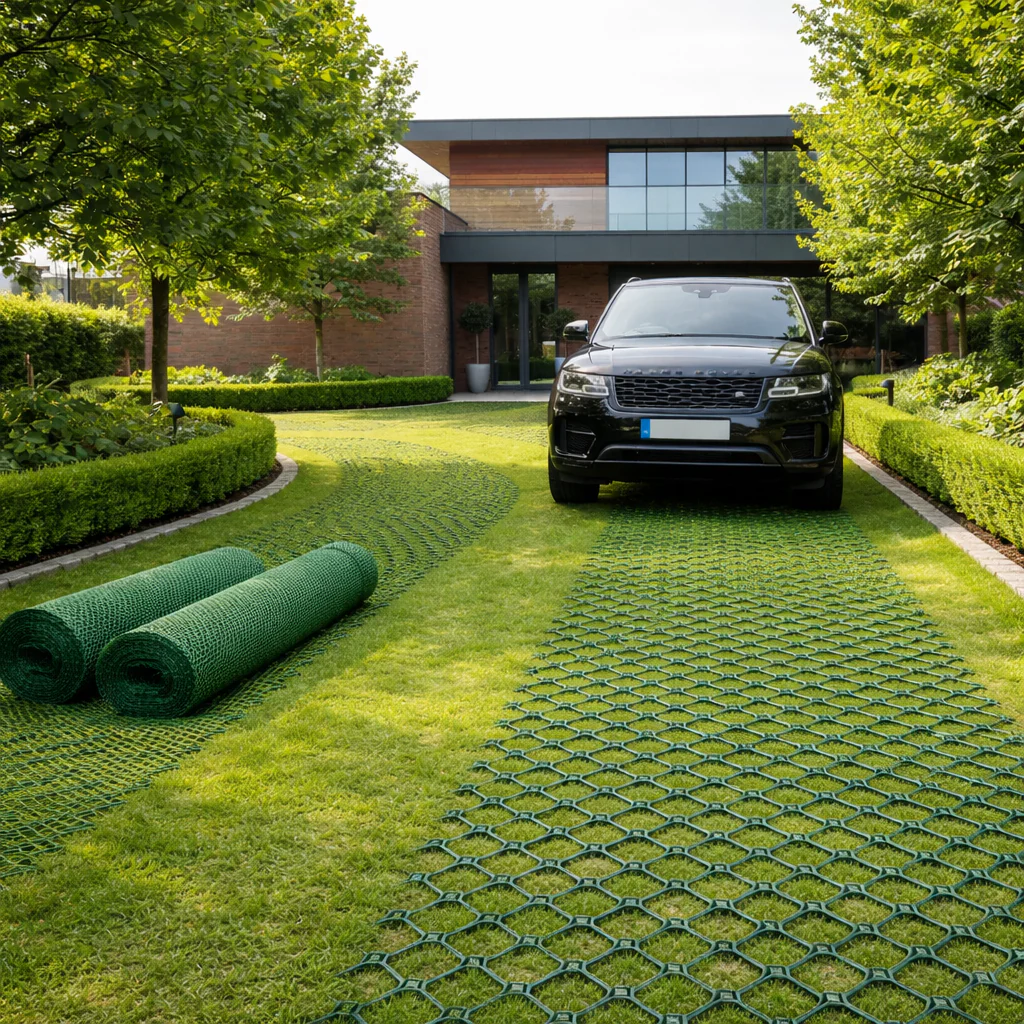

Overflow car parks and temporary parking areas
Golf course buggy paths and maintenance access routes
Grass verges and roadside protection
Garden paths and wheelchair accessible routes
Event spaces and festival parking areas
Caravan sites and camping ground access
School playing fields and sports facility access
Emergency vehicle access routes (fire lanes)
Equestrian facilities and stable yard access
Allotment and community garden pathways
Cemetery and memorial garden access
Park and recreation area vehicle access

Coverage & Roll Size Guide

Area Size	Rolls Required	U-Pins Required
60 m² (single parking bay)	1 roll (2m x 30m)	100 pins (1 pack)
120 m² (double parking bay)	2 rolls	200 pins (2 packs)
180 m² (triple parking bay)	3 rolls	300 pins (3 packs)
300 m² (small car park)	5 rolls	500 pins (5 packs)

Add 10% extra for overlaps and wastage. U-pins sold separately in packs of 100. For slopes or high-traffic areas, increase pin quantity by 50%.

Available Colours

Green:

Blends naturally with grass – virtually invisible once grass grows through. Most popular choice for car parks, paths, and visible areas.

Black:

Absorbs heat to accelerate grass growth in cooler months. Preferred for shaded areas or winter installations. Less visible in muddy conditions.

Performance & Durability

Load Distribution: 25mm x 25mm grid distributes vehicle weight across 625mm² per aperture, preventing point-load soil compaction and rutting.

UV Resistance: UV-stabilised HDPE formulation tested to 10+ years outdoor exposure without brittleness, cracking, or degradation per ISO 4892 accelerated weathering.

Frost Resistance: Maintains flexibility and strength from -40°C to +80°C – no brittleness in winter, no softening in summer.

Root Integration: Grass roots intertwine through mesh within 4-6 weeks, creating composite structure with 300%+ increased load-bearing capacity vs unprotected grass.

Drainage Performance: 100% permeable structure maintains natural drainage rates – prevents waterlogging and surface water pooling.

Maintenance & Longevity

Mowing: Mow as normal once grass is established. Mesh sits 5-10mm below grass height and won't damage mower blades. Rotary or cylinder mowers both suitable.

Fertilising: Apply standard lawn fertiliser as normal. Mesh doesn't inhibit nutrient uptake. Water-soluble fertilisers wash through mesh to roots.

Weed Control: Apply selective herbicides as normal. Mesh is chemically inert and won't be damaged by lawn treatments.

Aeration: Hollow-tine aeration can be performed through mesh. Avoid solid-tine aeration which may damage mesh structure.

Expected Lifespan: 10-15 years in typical car park or pathway use. 15-20 years in light-traffic applications. UV warranty covers 10 years minimum.

Repairs: Damaged sections can be cut out and replaced. Overlap new mesh by 100mm and secure with additional U-pins.

Why Choose Our Grass Reinforcement Mesh?

UK-Proven Performance: Over 50,000m² installed across UK car parks, golf courses, and event spaces with zero rutting reported
Premium HDPE Material: Unlike cheaper polypropylene alternatives, our HDPE mesh maintains strength and flexibility for 10+ years
Optimal Grid Size: 25mm aperture is ideal for UK grass species – smaller grids restrict growth, larger grids reduce load distribution
Professional Thickness: 4mm thickness (650g/m²) provides strength without excessive weight – lighter meshes fail under traffic
Easy Handling: 39kg roll weight allows one-person installation – heavier rolls require machinery
Cost-Effective Solution: Professional results at competitive pricing compared to plastic grid systems or concrete/paving alternatives

Environmental Benefits

Sustainable Drainage: Maintains natural water infiltration and drainage – reduces surface water runoff and flooding risk compared to impermeable surfaces.

Carbon Sequestration: Protected grass continues photosynthesis and carbon capture – 60m² of grass sequesters approximately 30kg CO₂ annually.

Biodiversity Support: Grass surface supports insects, worms, and soil microorganisms – unlike concrete or tarmac which create ecological dead zones.

Heat Island Reduction: Grass surface remains 10-15°C cooler than tarmac in summer – reduces urban heat island effect.

Recyclable Material: HDPE is fully recyclable at end of life – can be reprocessed into new plastic products.

Delivery

UK Stock: Held in UK warehouse for fast dispatch. Most orders ship within 1-2 working days.

Free Delivery: Free UK mainland delivery on orders over £100. Rolls delivered on pallet for easy handling.

Bulk Discounts: Volume pricing available for projects over 500m². Contact for quotation.

Technical Support & Project Assistance

Our groundwork specialists provide free technical support:

Site assessment and coverage calculations
Soil condition evaluation and preparation advice
Installation guidance and troubleshooting
Grass species recommendations for your climate
Drainage and slope management advice
Bulk pricing for large car parks and event spaces (500m²+)
Contractor recommendations for professional installation

Frequently Asked Questions

Will this support cars and vans?: Yes, with a 2.5 tonne load capacity per metre, the mesh easily supports cars (1.2-1.8 tonnes), vans (2-2.5 tonnes), golf buggies, and light commercial vehicles. Not suitable for HGVs or heavy plant machinery – use heavier-duty cellular systems for those applications.
How long does it last?: Our UV-stabilised HDPE mesh is guaranteed for 10+ years in UK weather conditions. Typical lifespan is 10-15 years in car park use, 15-20 years in pathway or light-traffic applications. Unlike cheaper polypropylene mesh which degrades in 3-5 years, our HDPE maintains strength and flexibility.
Can I mow over it?: Absolutely. Once grass grows through (4-6 weeks), the mesh sits 5-10mm below grass height. You can mow as normal with rotary or cylinder mowers. The mesh won't damage blades and provides a stable surface for mowing equipment.
Do I need the U-pins?: Yes, we strongly recommend securing with U-pins every 500mm to prevent movement, especially on slopes or in high-traffic areas. Without pins, the mesh can shift under vehicle turning forces, creating gaps and reducing effectiveness. Budget 100 pins per 60m² roll (1 pack).
Can I install this on a slope?: Yes, the mesh works well on slopes up to 1:3 (18°). Increase U-pin density to every 300mm on slopes to prevent downhill creep. For steeper slopes (1:3 to 1:2), consider additional anchoring or terracing. Not recommended for slopes steeper than 1:2 (27°).
Will grass grow through the mesh?: Yes, grass roots naturally grow through the 25mm x 25mm apertures within 4-6 weeks. The mesh actually encourages stronger root development by providing structure. For best results, install over established grass or seed immediately after installation. Keep well-watered during establishment.
What's the difference between green and black mesh?: Green blends naturally with grass and is virtually invisible once established – best for visible areas like car parks and paths. Black absorbs heat to accelerate grass growth in cooler months and is less visible in muddy conditions – preferred for shaded areas or winter installations. Performance is identical.
Can I drive on it immediately after installation?: Light vehicle traffic (cars, vans) is possible immediately if installed over established grass, but we recommend waiting 4-6 weeks for roots to grow through mesh for maximum strength. If installed on bare soil or freshly seeded area, wait 8-10 weeks for full grass establishment before vehicle traffic.
How do I calculate how much I need?: Measure your area in metres (length x width = m²). Each roll covers 60m². Divide your area by 60 and round up. Add 10% for overlaps and wastage. Example: 150m² car park ÷ 60 = 2.5 rolls, round up to 3 rolls + 10% = 3 rolls required. Order 1 pack of U-pins (100 pins) per roll.
Is this suitable for wheelchair access?: Yes, once grass is established through the mesh, it provides a firm, stable surface suitable for wheelchairs, mobility scooters, and pushchairs. The mesh prevents rutting and maintains level surface even in wet conditions. Ensure grass is kept mown to 50-75mm height for easiest access.
