Premium 90° Elbow Connector for 33.7mm Tube - Yellow Powder Coated with Grub Screws for Internal Use

Product Overview

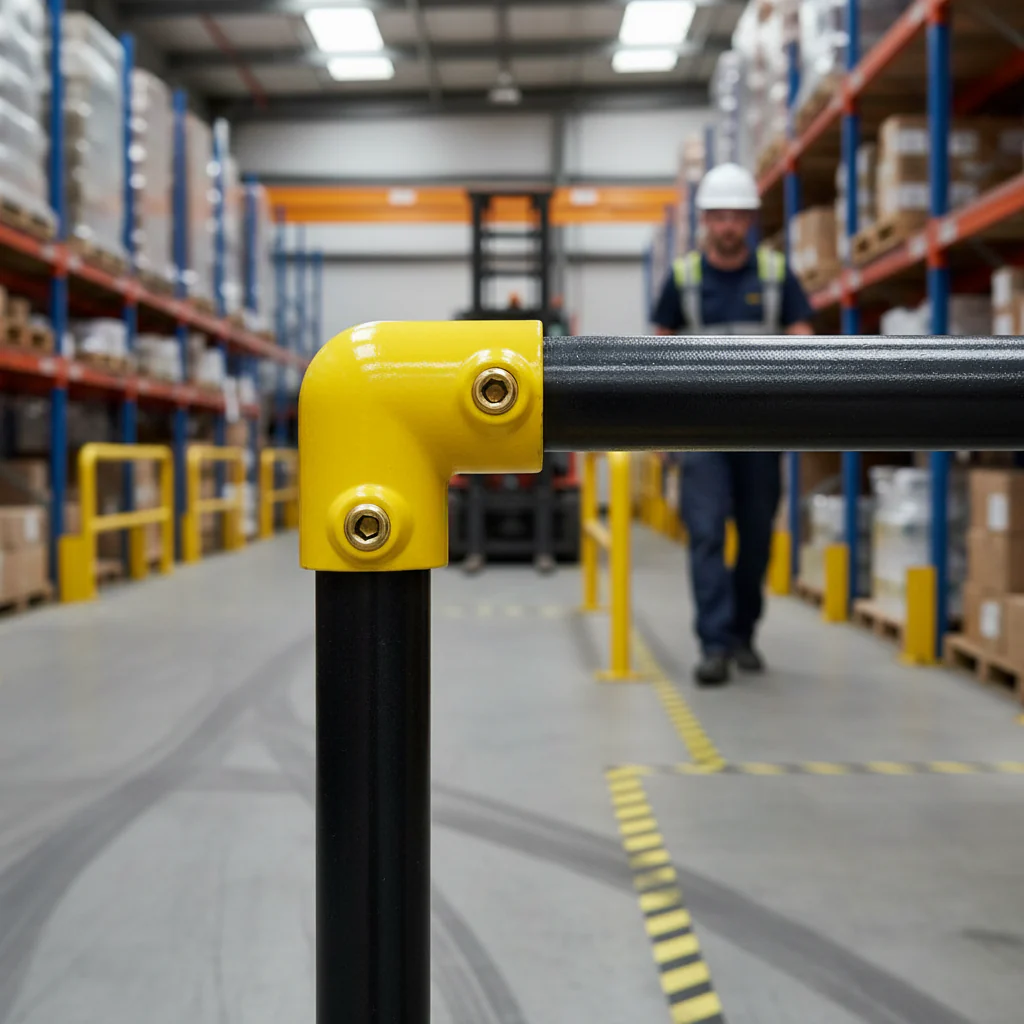

This Premium 90° Elbow Connector is designed to suit 33.7mm tubes, featuring a vibrant yellow powder-coated finish (RAL1023). This elbow connector is ideal for connecting end verticals to top rails in straight and level guardrail systems or as a 90° tube bend.

Key Features

• Material: High-quality steel with yellow powder coating
• Designed specifically for internal installations
• Brass-coated grub screws for a polished appearance
• Rust prevention measures for outdoor use

Usage Instructions

For optimal performance, it is recommended that if the fittings are used in an external environment, the internal threaded areas and the grub screws should be coated with matching yellow spray paint to provide additional protection against weather exposure.

Technical Specifications

Specification	Measurement
Tube Size Compatibility	33.7mm
Weight	0.35 kg
Length	70.0mm
Width	70.0mm
Depth	42.0mm
Material	Malleable Iron
Material finish	Powder Coated

Color Options

• Yellow (RAL1023)

FAQs

• Can this connector be used outdoors? Yes, but it is recommended to coat internal areas and screws with matching spray paint for weather protection.
• What is the main use of this elbow connector? It is primarily used to connect vertical tubes to top rails in guardrail systems.
• What kind of finish does this connector have? The connector is finished with a durable yellow powder coating.
