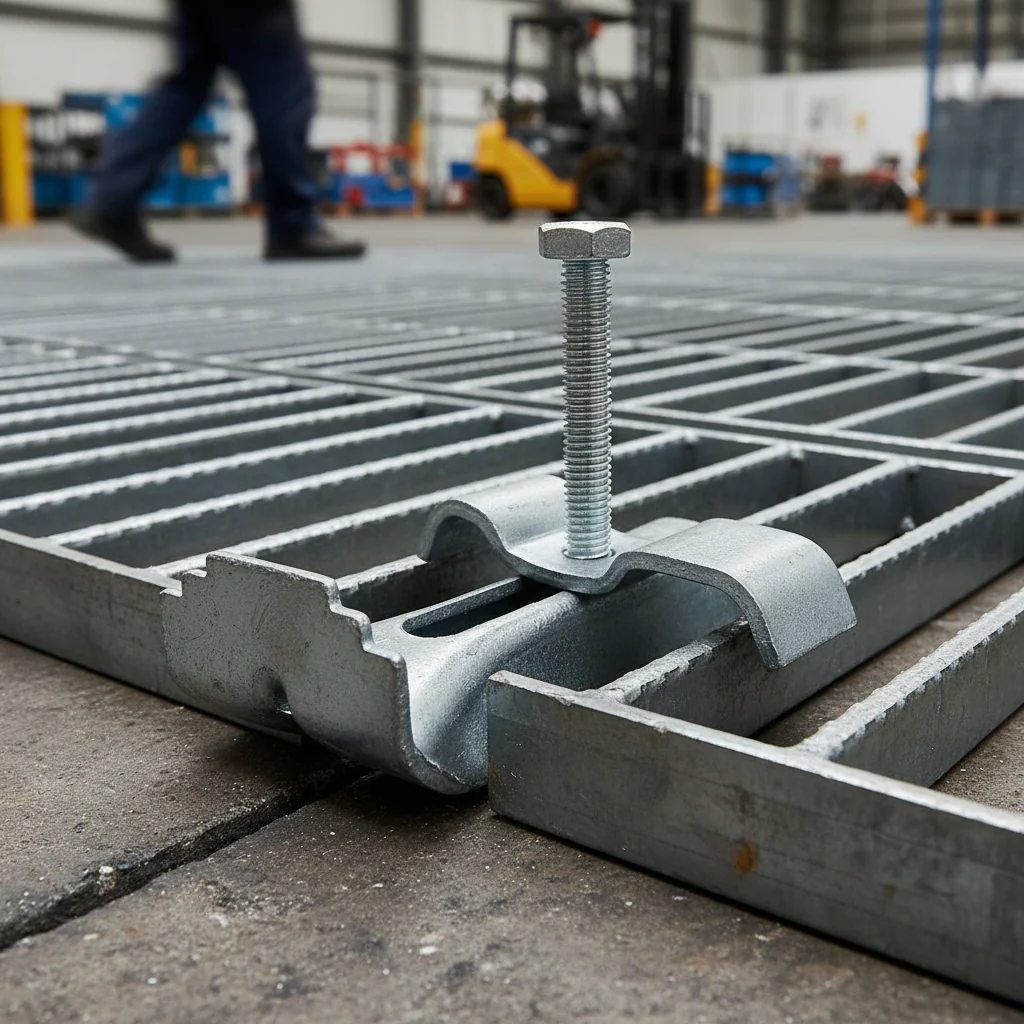

Premium Flooring Grating Clip for 30mm to 41mm Load Bar Centres - Galvanised with M8 Screw for Easy Installation

Product Overview

The Premium Flooring Grating Clip is designed to accommodate load bar centres ranging from 30mm to 41mm, making it an ideal solution for various flooring applications. This clip features a robust, galvanised construction, ensuring durability and resistance to corrosion.

Key Features

• Installation from one side only for convenience
• Compatible with load bars between 30mm and 41mm
• Can fit load bars up to 50mm deep
• Slotted body allows for adjustment towards steel work
• Includes M8 screw for secure fastening
• Galvanised finish for enhanced durability

Technical Specifications

Specification	Measurement
Load Bar Centre Compatibility	30mm to 41mm
Maximum Load Bar Depth	50mm
Screw Size	M8
Weight	0.15 kg
Length	90.0mm
Width	48.0mm
Depth	19.0mm
Material	Mild Steel
Material finish	Galvanised

Installation Instructions

This flooring clip is designed for quick and easy installation from one side only, allowing for efficient setup and adjustment as needed.

Benefits

• Enhances stability of flooring systems
• Durable galvanised finish resists corrosion and wear
• Easy to adjust for precise fit

FAQs

• Q: Can these clips be used with other load bar sizes?
• A: These clips are specifically designed for load bars between 30mm and 41mm.

• Q: What is the maximum depth of load bars that can be used?
• A: The clips can fit load bars up to 50mm deep.
