Rubber & Steel Dock Bumper with Fixings 465 x 275 x 110mm

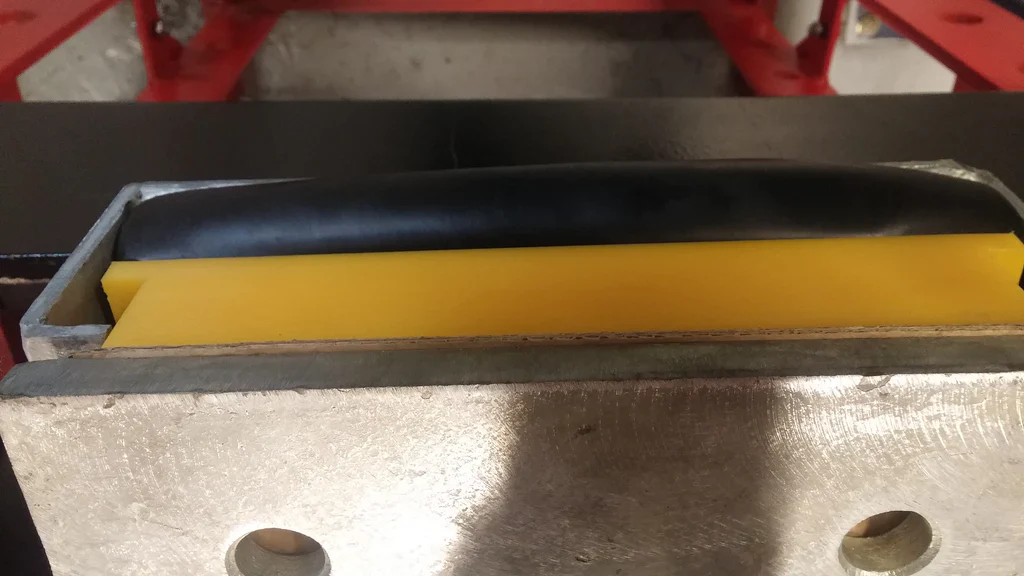

This Dock Bumpers 465x275x110 has a large impact area with no holes in the UHMWPE face plate for the back of the truck to snag on. The 50mm thick face can slide freely up and down in its steel cradle back plate.
Compresses 11mm under 15 tonne load
PRODUCT INFORMATION
- 465mm by 275mm by 110mm
- Weight 27kg
- Free fixings included in it.
Benefits of using a This Dock Bumpers 465x275x110
- Cost-effective solution to protect your building from damage.
01. SN054 Back Plate:
The SN054 is the backing plate used in our SN021 Dock Bumper.
This backplate has 4 fixing holes... 2 at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket ( if required ) and 2 at the bottom at 20mm dia.
- Approx Dims: 470 x 275 x 80 mm
- Weight: 16 kg
More Images
Rubber & Steel Dock Bumper with Fixings 465 x 275 x 110mm
This Dock Bumpers 465x275x110 has a large impact area with no holes in the UHMWPE face plate for the back of the truck to snag on. The 50mm thick face can slide freely up and down in its steel cradle back plate.
Compresses 11mm under 15 tonne load
PRODUCT INFORMATION
- 465mm by 275mm by 110mm
- Weight 27kg
- Free fixings included in it.
Benefits of using a This Dock Bumpers 465x275x110
- Cost-effective solution to protect your building from damage.
01. SN054 Back Plate:
The SN054 is the backing plate used in our SN021 Dock Bumper.
This backplate has 4 fixing holes... 2 at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket ( if required ) and 2 at the bottom at 20mm dia.
- Approx Dims: 470 x 275 x 80 mm
- Weight: 16 kg
