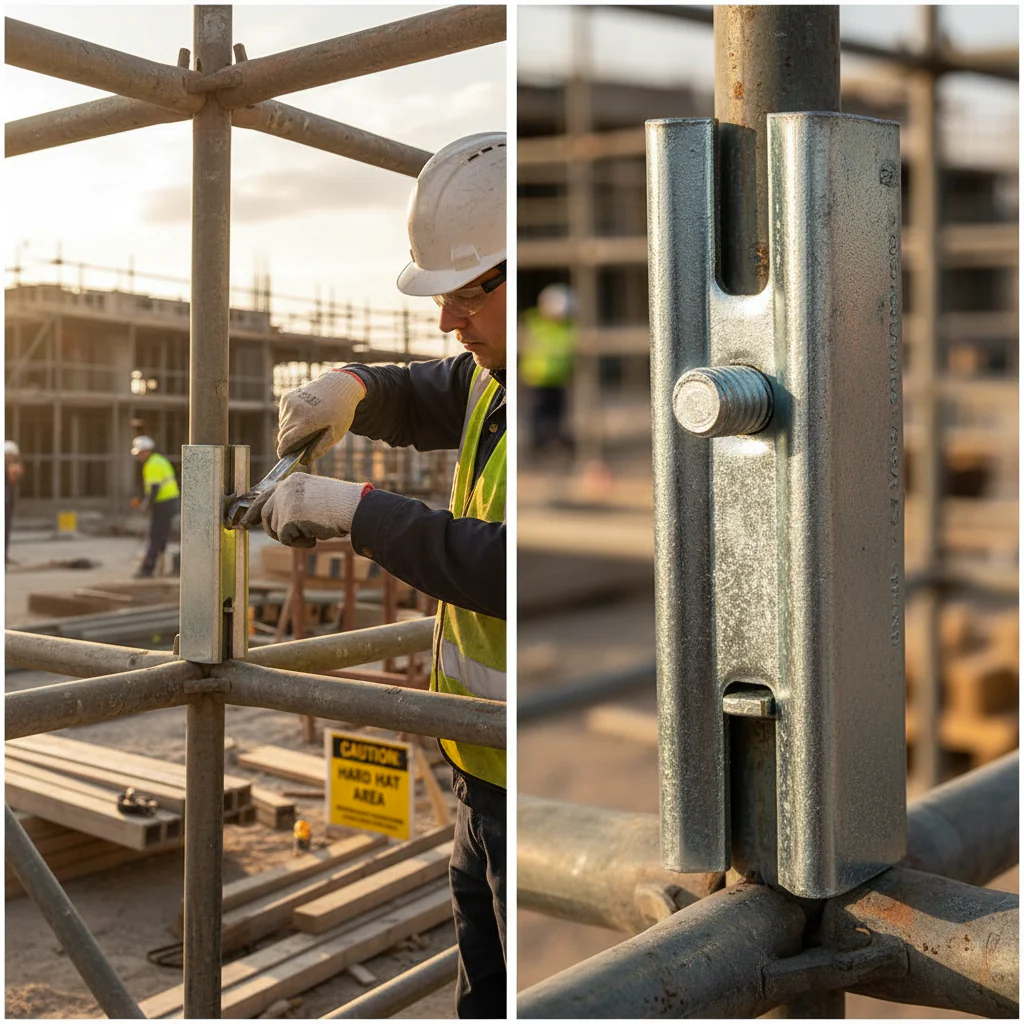

Professional Single Screw Splice Lock for 48.3mm Tube - Durable Steel with Zinc Plated Finish for Handrails and Street Furniture

Product Overview

The Professional Single Screw Splice Lock is designed to join 48.3mm tubes with wall thickness ranging from 2.6mm to 4.0mm. Crafted from the highest quality pressed steel and featuring a zinc plated finish, this splice lock prevents corrosion and ensures longevity.

Applications

This splice lock is ideal for various applications, including:

• Handrails
• Guardrails
• Street furniture

Features and Benefits

The splice lock offers numerous benefits, including:

• Effective and convenient method for butt joining tubular railings of the same diameter.
• Engineered for a perfect non-slip joint that is completely flush and virtually unnoticeable.
• Unique design allows for easy insertion into the tube without separation of halves.
• Once the allen screw is tightened, it contacts the tube internally in four areas along the full length, ensuring alignment and maximum strength.
• Allows easy onsite joints, perfect for situations where aesthetics and durability are of prime importance.

Dimensions & Specifications

Specification	Measurement
Tube Diameter	48.3mm
Wall Thickness	2.6 - 4.0mm
weight	0.21 kg
length	96.0mm
width	36.0mm
depth	30.0mm
material	Mild Steel
material finish	Zinc Plated

Technical Specifications

• Material: Pressed Steel
• Finish: Zinc Plated
• Corrosion Resistance: Yes

FAQs

Q1: Can this splice lock be used with different diameter tubing?
A1: No, splice locks are designed to join tubing of the same diameter only.

Q2: Is the splice lock suitable for outdoor use?
A2: Yes, the zinc plated finish provides protection against corrosion, making it suitable for outdoor applications.

Q3: How does the installation work?
A3: The splice lock is inserted into the tube, and once the allen screw is tightened, it creates a strong joint by contacting the tube internally.
