Premium 5-Channel Hose and Cable Protection Ramp with Lid - Heavy Duty, 960 x 590 x 80 mm Dimensions, 12 Tonnes Load Capacity

Cable Hose Protection Ramp

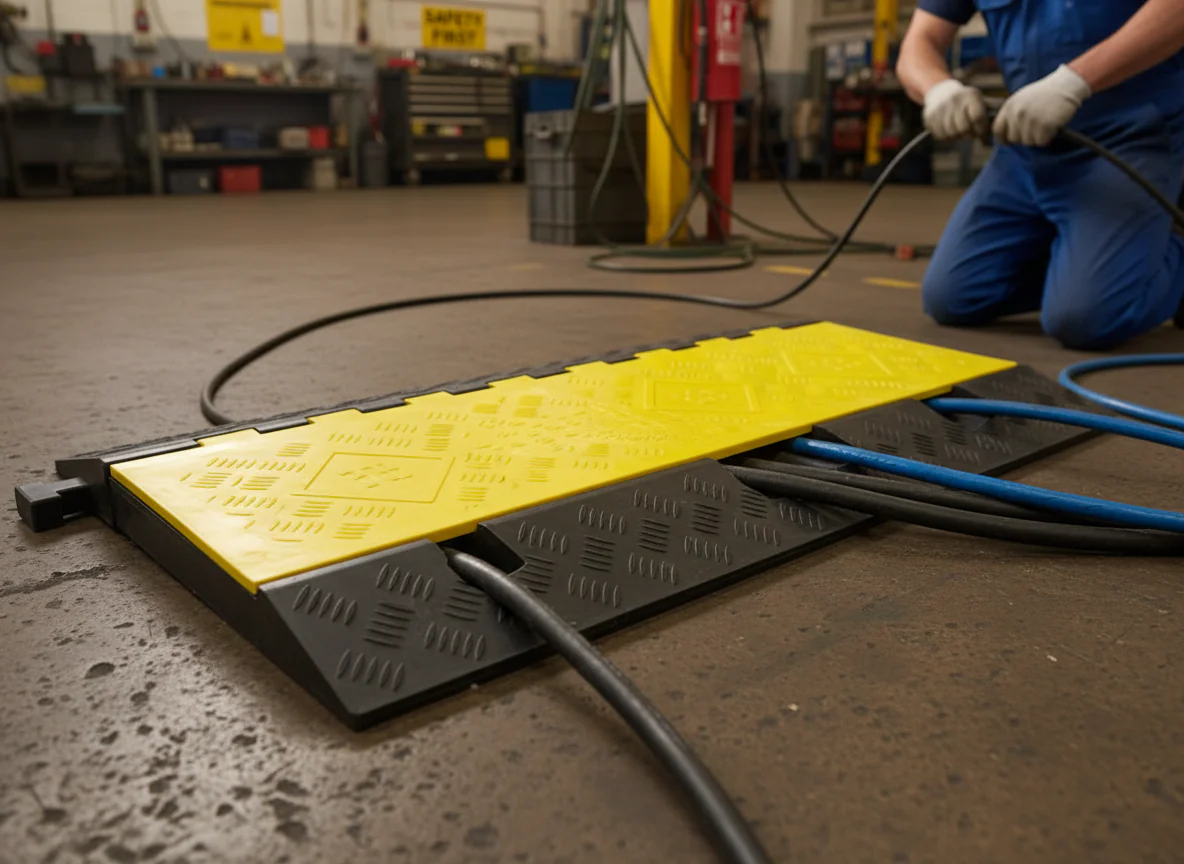

Secure your cabling when crossing vehicles with our robust cable protection ramp. This hose and cable ramp is a 5-channel ramp with a lid designed for both pedestrians and vehicles. Each unit measures 960 mm in length, 590 mm in width, and 80 mm in height, and can be clicked together to form a continuous run. Cables and hoses can be added or removed once the ramps are in place. The lids are made of highly visible yellow polyethylene (PE), enhancing safety and visibility.

Details:

• Dimensions: 960 x 590 x 80 mm
• Weight: 23 kg
• Channels: 50 mm deep x 35 mm wide
• Maximum Load Capacity: 12 tonnes per single wheel axle

Note: These ramps are designed for temporary deployment and are not suitable for permanent fitting.

Important: Signage should be in place to slow traffic down (maximum 5 mph) while traversing the ramp. Not suitable for forklifts.

Dimensions & Specifications

Specification	Measurement
Length	960 mm
Width	590 mm
Height	80 mm
Weight	23 kg
Channel Depth	50 mm
Channel Width	35 mm
Load Capacity	12 tonnes per single wheel axle

Technical Specifications

• Material: Durable polyethylene (PE)
• Color: Highly visible yellow
• Application: Suitable for pedestrian and vehicle traffic

FAQs

• Can the ramp be used for forklifts? No, this ramp is not suitable for forklifts.
• How many ramps can be connected together? Each ramp can be clicked together to create a continuous run.
• What is the maximum speed allowed on the ramp? Traffic should be slowed to a maximum of 5 mph while traversing the ramp.
