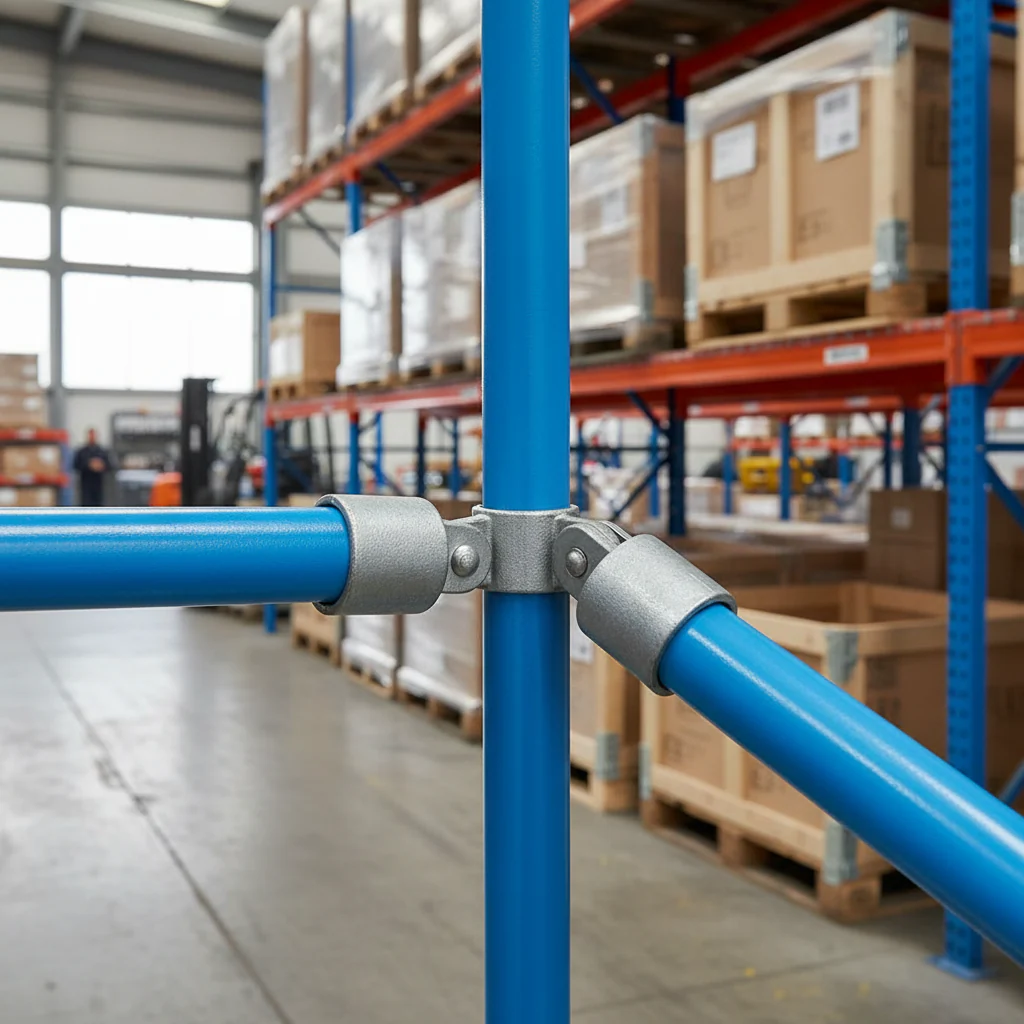

Professional 90° Corner Double Swivel Connector for 33.7mm Tube - Heavy Duty Riveted Assembly for Difficult Applications

Product Overview

This Professional 90° Corner Double Swivel Connector is specifically designed to accommodate 33.7mm tubes, making it an ideal solution for challenging applications where angles cannot be achieved with traditional adjustable fittings.

Features

• Designed for 33.7mm tube compatibility
• 90° swivel connector for ease of installation
• Each swivel allows for approximately 85° of travel from the horizontal in both vertical directions
• Durable riveted assembly for enhanced stability and strength
• Perfect for difficult applications requiring advanced flexibility

Technical Specifications

• Material: High-Performance metal construction
• Connector Type: Double swivel
• Angle: 90°
• Tube Size: 33.7mm
• Swivel Travel: Approximately 85° from horizontal
• Weight: 1.14 kg
• Length: 63.0mm
• Width: 44.0mm
• Material: Malleable Iron
• Material finish: Galvanised

Applications

This connector is primarily used in settings where traditional fittings cannot meet the required angle specifications. Its robust design ensures reliable performance under various conditions.

FAQ

Q: What is the maximum angle this connector can achieve?

A: It offers approximately 85° of travel from the horizontal in both vertical directions.

Q: What type of tube does this connector fit?

A: It is specifically designed to fit a 33.7mm tube.

Q: Is the connector suitable for outdoor use?

A: Yes, the heavy-duty construction makes it suitable for a variety of environmental conditions.
