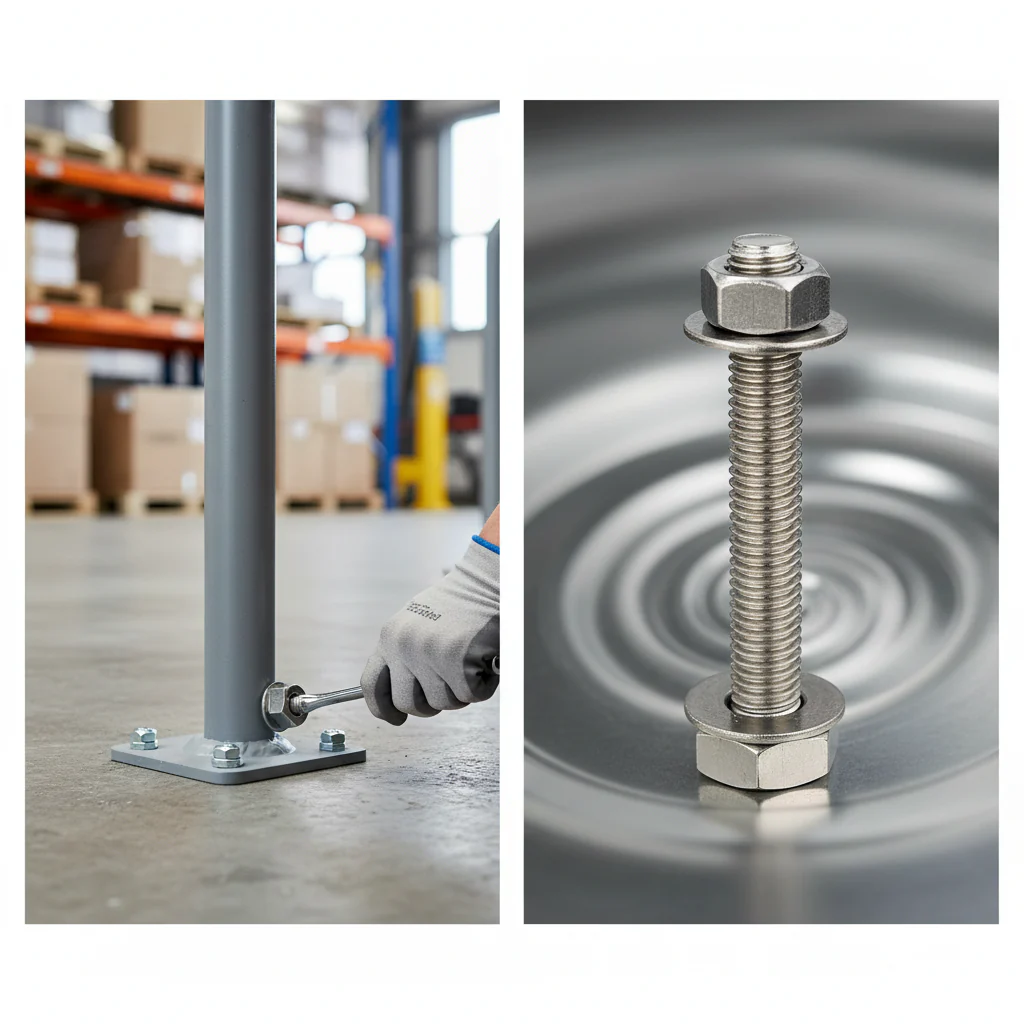

Premium M10 Hex Bolt and Nut Set for Handrail Fittings with Stainless Steel Washers

Product Overview

This Premium M10 Hex Bolt and Nut Set is designed specifically for handrail fittings, ensuring secure and reliable attachment for your base foot to the stanchion post.

Key Features

• Includes M10 x 80 stainless steel hex head bolt
• Two stainless steel washers for enhanced durability
• Nuts included for secure fastening
• Compatible with standard and triangular base foot designs

Installation Instructions

The installation process requires a 10mm high-speed steel (HSS) drill bit. Follow these steps for proper installation:

• Drill straight through the base foot and the tube with the 10mm HSS drill bit.
• Insert the M10 bolt through the drilled holes.
• Place a washer on either side of the foot before securing with the nut.

Technical Specifications

Specification	Measurement
Bolt Length	80mm
Bolt Diameter	M10
Weight	0.07 kg
Length	87.0mm
Width	17.0mm
Depth	8.0mm
Material	GRP
Suit tube	50mm

Frequently Asked Questions

• What materials are used in this set?
  The set features stainless steel for the bolt, washers, and nut, ensuring strength and corrosion resistance.
• Is this set compatible with all handrail bases?
  Yes, it is designed to work with both standard and triangular base feet.
• How do I ensure a secure installation?
  Make sure to drill straight through the base foot and the tube, and secure the nut tightly after inserting the bolt.
