Premium 2-Channel Lidded Ramp for Pedestrians and Vehicles - Heavy Duty Cable Protector (900 x 615 x 100 mm)

Temporary Pedestrian Cable Protector

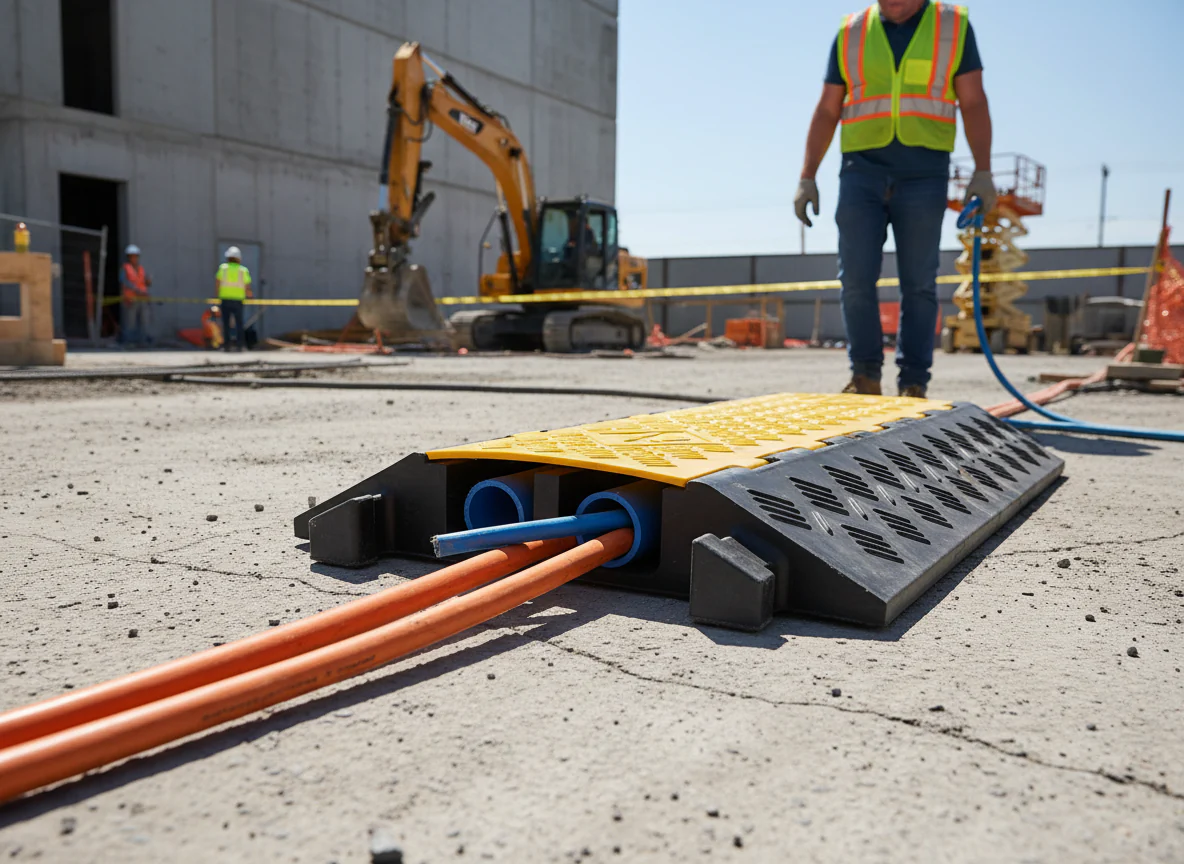

The Premium hose and cable ramp is a 2-channel lidded ramp designed for pedestrians and vehicles. Interlocking connectors for every 900 mm unit allow for a continuous run. Cables and hoses can be added or removed once the ramps are in place. The lids are made of highly visible yellow polyethylene (PE).

Details:

• Dimensions: 900 x 615 x 100 mm
• Weight: 26 kg
• Maximum Load: 12 Tonnes per vehicle axle
• Channel Widths: 84mm (base), 92mm (top), 75mm (height)

Technical Specifications

Specification	Measurement
Length	900 mm
Width	615 mm
Height	100 mm
Weight	26 kg
Maximum Load	12 Tonnes per axle
Channel Width (Base)	84 mm
Channel Width (Top)	92 mm
Channel Height	75 mm

Note: These ramps are intended for temporary use and not for permanent installation.

Important: Signage should be in place to slow traffic when crossing the ramp (maximum speed: 5 mph). Not suitable for forklift trucks.

FAQ

• Can these ramps be used for heavy machinery? No, they are not suitable for forklift trucks.
• Are the ramps easy to install? Yes, the interlocking connectors make installation straightforward.
• What materials are used in the ramps? The lids are made of highly visible yellow polyethylene (PE).
