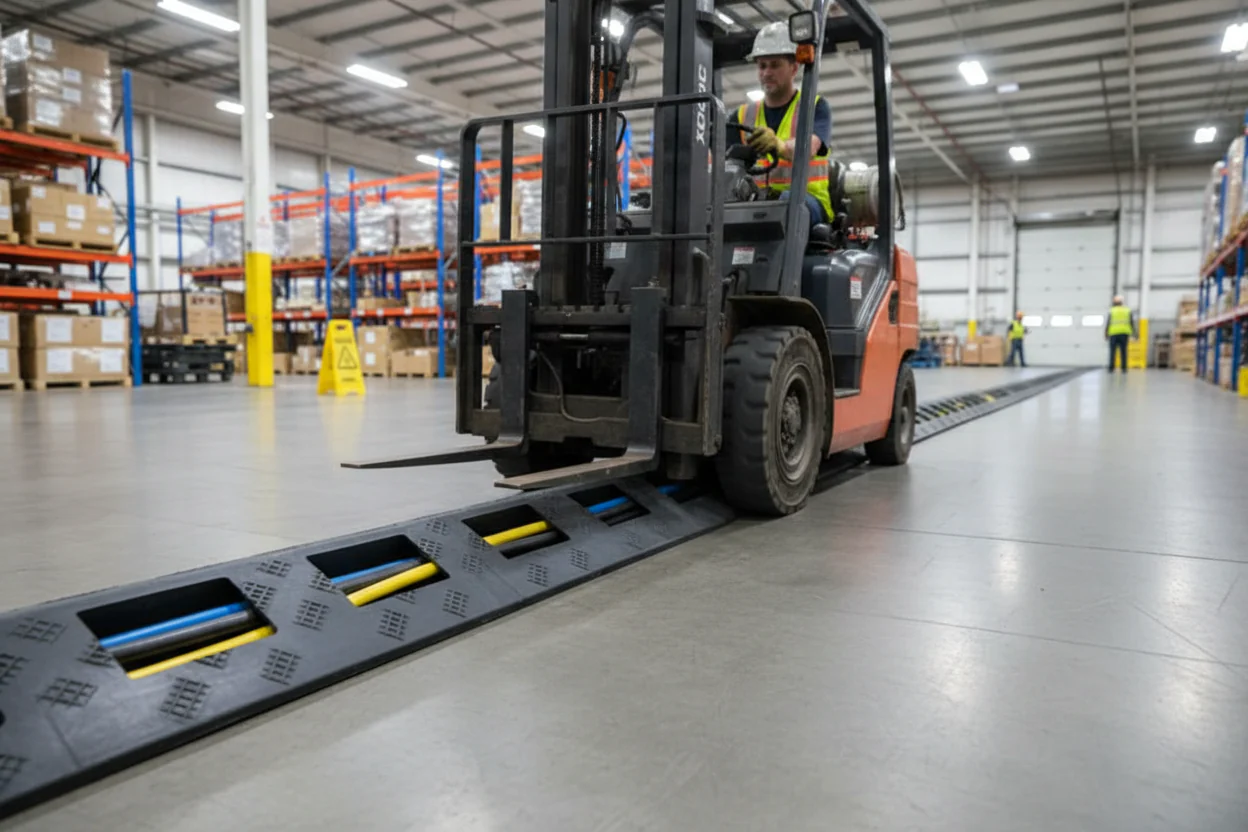

Premium Heavy Duty 3 Channel Cable Ramp End Connector for Hose and Cable Management with High Strength Rubber Construction

Rubber Hose Cable Ramp

This Premium 3 Channel Cable Ramp End Connector is designed for effective hose and cable management. Constructed with high strength rubber, it supports an axle weight of up to 12 tonnes when joined to compatible ramps.

This component is sold as a pair, including one male and one female connector. Please note that this part does not include a cover.

Dimensions & Specifications

Specification	Measurement
Male Fitting Dimensions	150 x 590 x 80 mm
Female Fitting Dimensions	200 x 590 x 80 mm
Weight	9 kg
Outer Channels	70 mm wide x 50 mm deep
Inner Channel	55 mm wide x 50 mm deep

Note: These ramps are intended for temporary deployment and not for permanent fitting.

Technical Specifications

• Material: High Strength Rubber
• Load Capacity: Up to 12 tonnes when combined with compatible ramps

FAQs

• What is the maximum load capacity?
  The maximum load capacity is up to 12 tonnes when used with compatible ramps.
• Are the connectors sold separately?
  No, this item is sold as a pair, including one male and one female connector.
• Can these ramps be used for permanent installations?
  No, they are designed for temporary deployment only.
