Premium Straight Handrail Support Pin 14mm Diameter with M8 and M6 Threads for Versatile Connections

Product Description

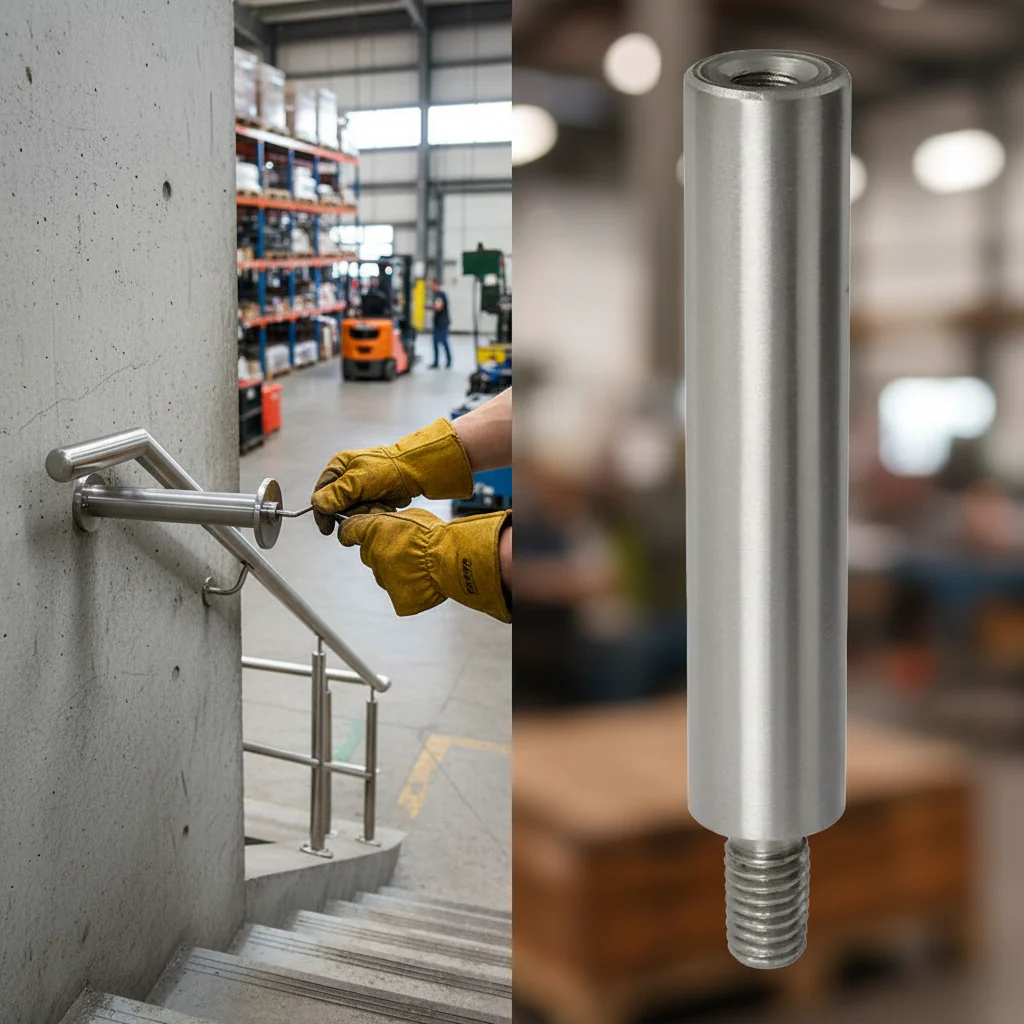

The Premium Straight Handrail Support Pin is designed for durability and strength, featuring a diameter of 14mm. This support pin is essential for ensuring stability in handrail systems.

Key Features

• 14mm Diameter for secure fitting
• M8 Thread to connect to tube end cap
• M6 Thread to connect to handrail support plate or can be welded to handrail tube

Dimensions & Specifications

Specification	Measurement
Diameter	14mm
Weight	0.08 kg
Length	68.0mm
Width	14.0mm
Depth	6.0mm
Material	316 Stainless Steel
Material finish	Satin

Technical Specifications

• M8 Thread for tube end cap connection
• M6 Thread compatible with support plates and for welding

FAQ

• What is the diameter of the support pin?
  The diameter is 14mm.
• What types of threads does the support pin have?
  It features M8 and M6 threads for versatile connections.
• Can this pin be welded to a handrail tube?
  Yes, it can be welded to a handrail tube using the M6 thread.
