Premium Insert Lock for 60mm Box Section Gates with Stainless Steel Mechanism and Adjustable Daybolt

Product Overview

This Premium Insert Lock is specifically designed for gates with a 60mm box section. It features a state-of-the-art stainless steel mechanism ensuring durability and strength. The adjustable self-latching bolt and hook ensure that the gate remains securely closed, preventing unauthorized access.

Key Features

• Stainless steel lock mechanism with a cover plate to prevent dirt penetration.
• Adjustable daybolt allows continuous adjustment up to 10mm without needing to dismount the lock.
• Key-operated self-latching bolt for enhanced security.
• Easy to switch the self-latching daybolt for left or right-handed installations.
• Throw of the hook: 21mm for a solid closure.
• Compatible with Europrofile cylinders for easy key integration.
• Backset 40mm for mounting in profiles of 60mm depth or more.

Dimensions & Specifications

Specification	Measurement
Backset	40mm
Throw of the hook	21mm
Center distance between cylinder and handle	92mm
Weight	0.59 kg

Installation Information

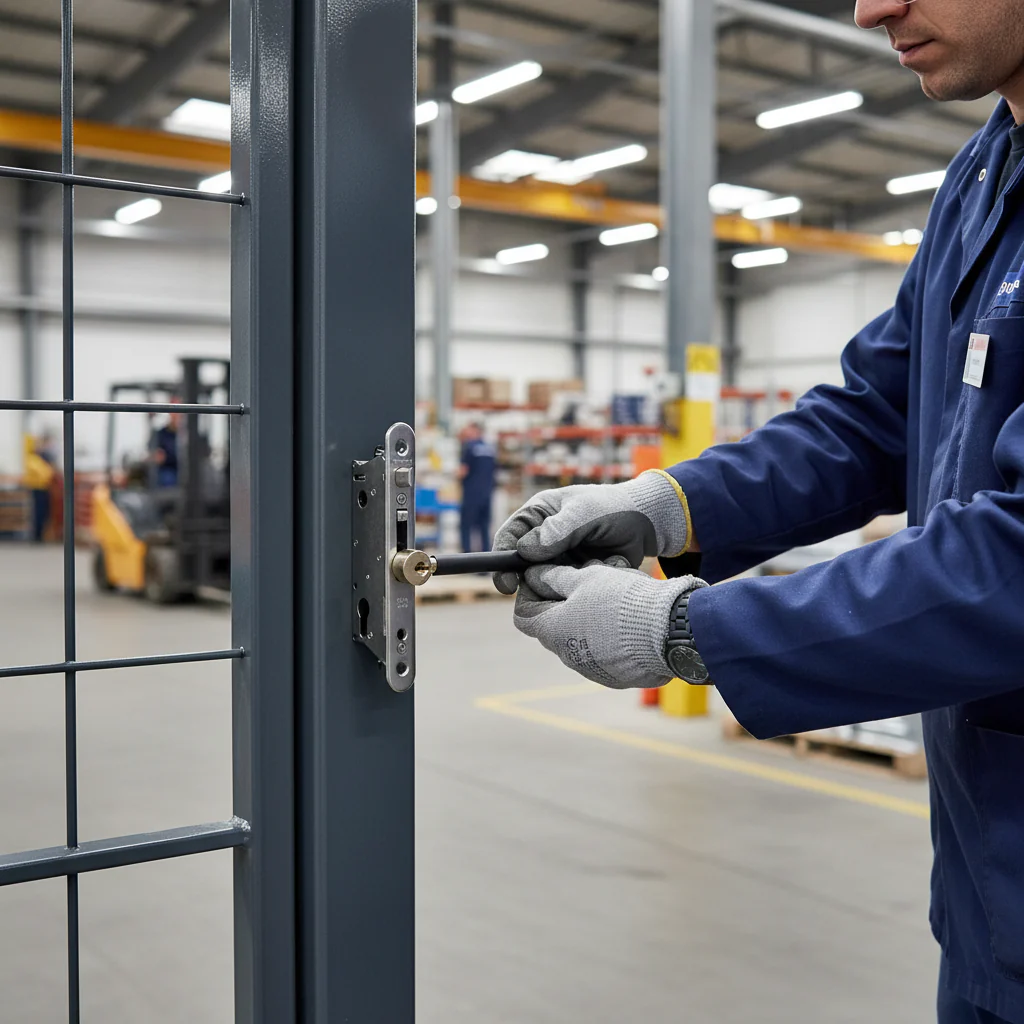

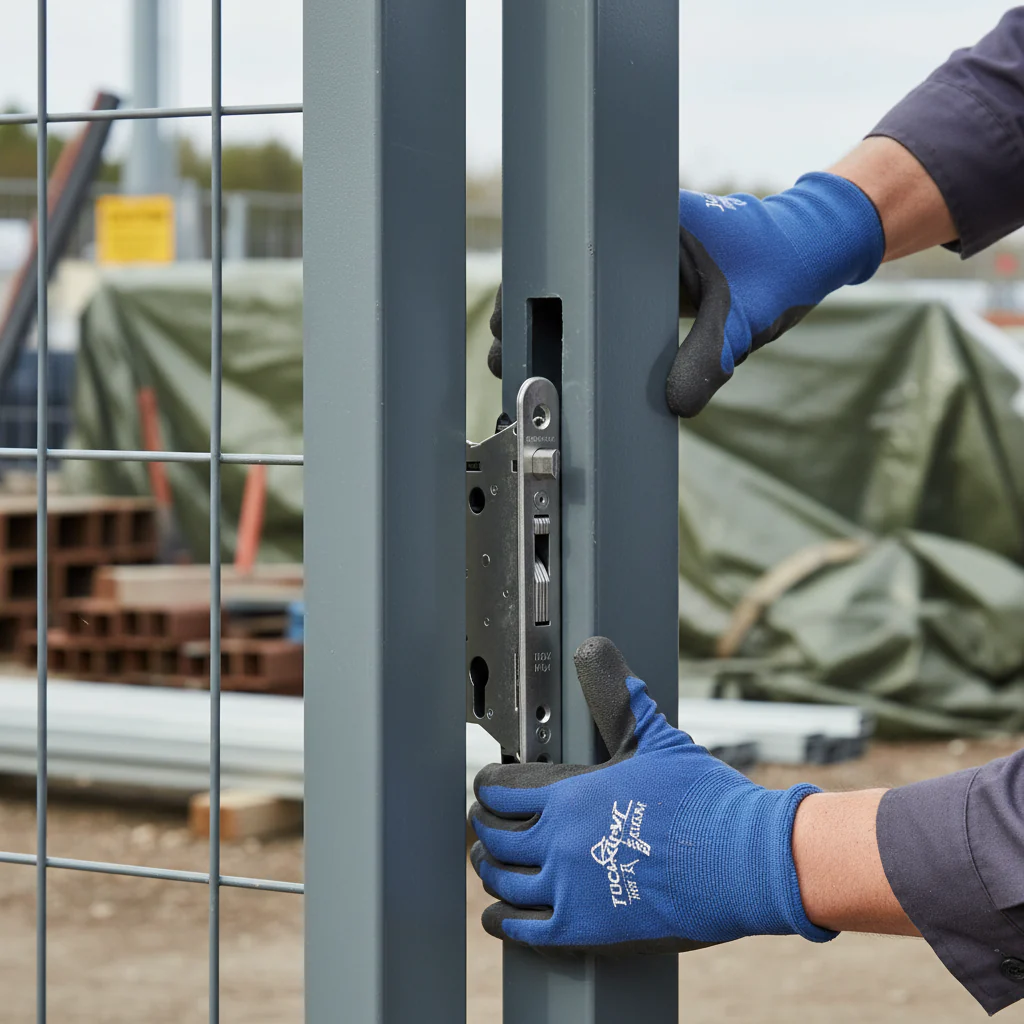

The patented "Click-It" system allows for quick and secure installation of the lock. It can be mounted on various gate materials including metal, aluminium, and PVC, making it a versatile choice for your security needs.

FAQ

• Can this lock be used on all types of gates? Yes, it is compatible with metal, aluminium, and PVC gates.
• Do I need any special tools for installation? No, the patented system allows for quick installation without special tools.
• Are handles included with the lock? No, handles and accessories need to be ordered separately.
