Premium Key Clamp Corner Post Kit for 48.3mm Tube - Yellow Powder Coated with Complete Assembly Components

Product Overview

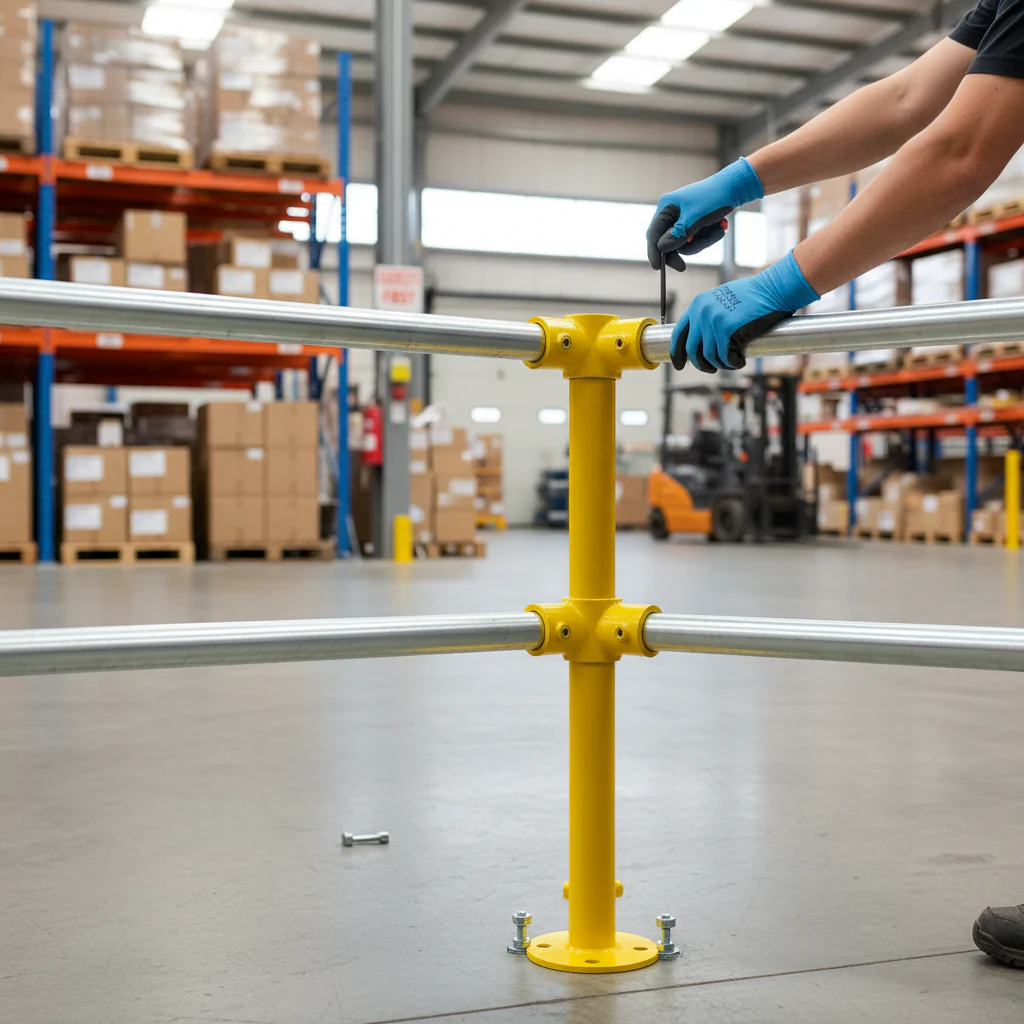

The Premium Key Clamp Corner Post Kit is designed to fit 48.3mm tubes, providing a secure and reliable corner structure for various applications. This kit features durable yellow powder coating for enhanced visibility and protection.

Features

• Yellow Powder Coated RAL1023 for a vibrant finish
• Overall height of 1100mm, with a mid rail height of 550mm
• Includes components: Y132D Oval Base, Y116D Mid Rail Corner, Y128D Top Rail Corner, and a 1060mm length of tube

Our clamp fittings are specifically made for internal installations only. The brass-coated grub screws are intended to create a unique finished appearance but are not suitable for outdoor use unless properly protected.

If the fittings are used in an external environment, it is essential to coat the internal threaded areas and grub screws with matching yellow spray paint to protect against weather exposure.

Dimensions & Specifications

Specification	Measurement
Overall Height	1100mm
Mid Rail Height	550mm
Tube Length	1060mm
Weight	6.7 kg
Length	1100.0mm
Width	48.3mm
Depth	48.3mm
Material	Mild Steel
Material finish	Powder Coated
Suit tube	48.3mm

Technical Specifications

• Material: Steel with Yellow Powder Coating
• Internal Threaded Areas for Secure Fitting
• Brass-Coated Grub Screws for Enhanced Appearance

Safety and Usage Notes

** Please note this product is supplied loose and will need to be assembled. It is recommended for internal use only as they are not galvanised. **

Frequently Asked Questions (FAQ)

• Can this kit be used outdoors?
  No, it is recommended for internal use only unless properly coated for outdoor protection.
• What is included in the kit?
  The kit includes an oval base, mid rail corner, top rail corner, and a length of tube.
• How do I maintain the finish?
  For touch-ups and custom applications, use matching spray paint to ensure continued protection and appearance.
