Premium Wall Mounting Kit for High-Performance Gate Closer - Adjustable Steel Plates for Easy Installation

Product Overview

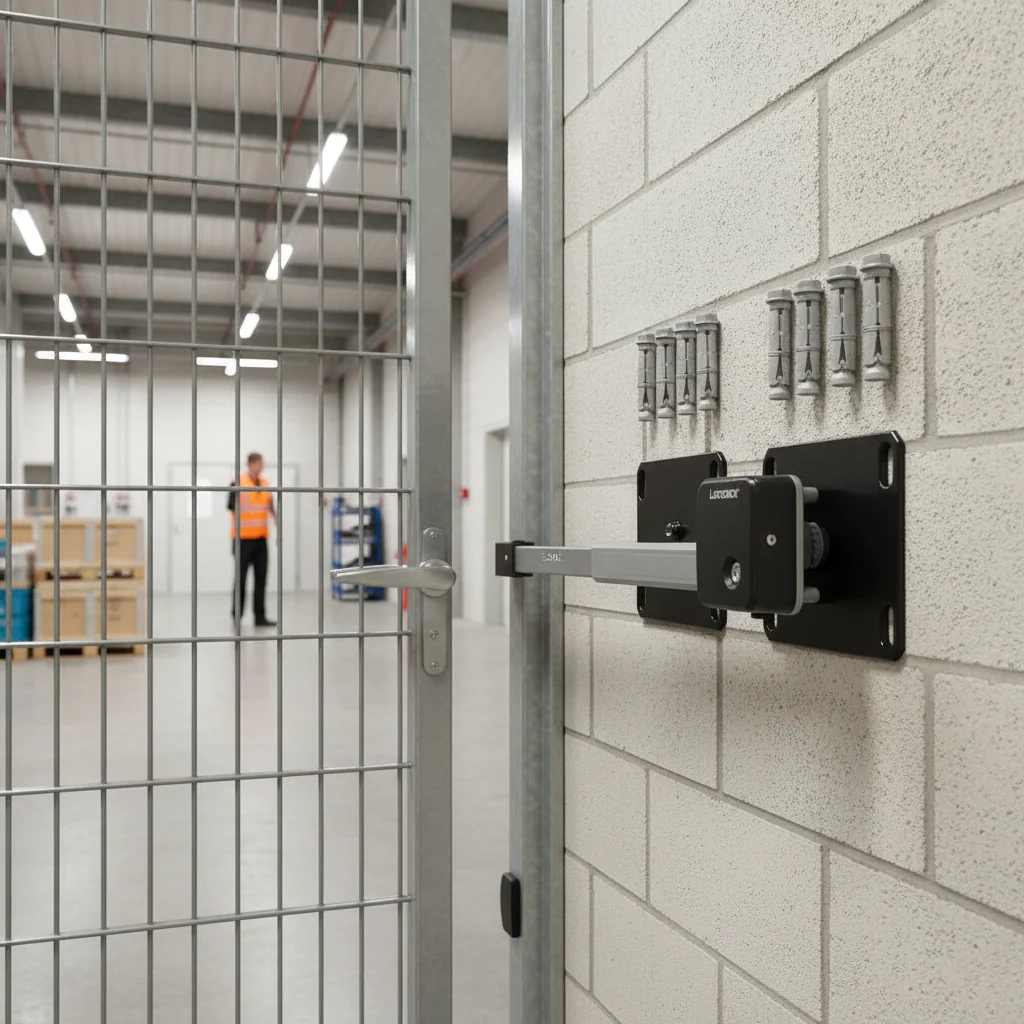

This Premium Wall Mounting Kit is an optional set designed to fix a high-performance gate closer directly onto the wall. This robust set consists of two wall plates made of hot-dip galvanized steel, ensuring durability and resistance to corrosion.

Key Features

• Wall plates constructed from hot-dip galvanized metal with a protective RAL9005 powder coating for enhanced longevity.
• Minimum distance between the gate and the wall: 29 mm.
• Depth adjustment feature allowing a maximum adjustment of 15 mm.
• Height adjustment option providing up to 10 mm of flexibility.
• Minimal opening clearance under the gate: 15 mm.
• Compatibility: Specifically designed only for use with high-performance gate closers.

Dimensions & Specifications

Specification	Measurement
Minimum Distance Between Gate and Wall	29 mm
Depth Adjustment	15 mm
Height Adjustment	10 mm
Minimal Opening Under Gate	15 mm
Weight	1.07 kg
Length	95.0mm
Width	95.0mm
Depth	70.0mm

Installation Instructions

This mounting kit comes with all necessary fixations for a straightforward installation process. Ensure the wall surface is appropriate for the mounting plates to provide a secure fit.

FAQ

• Q: Is this kit compatible with all gate closers?
  A: No, this kit is only compatible with high-performance gate closers.
• Q: What material are the wall plates made from?
  A: The wall plates are made from hot-dip galvanized steel with a powder coating for added protection.
• Q: Can I adjust the height and depth after installation?
  A: Yes, the kit allows for height and depth adjustments to ensure proper alignment.
