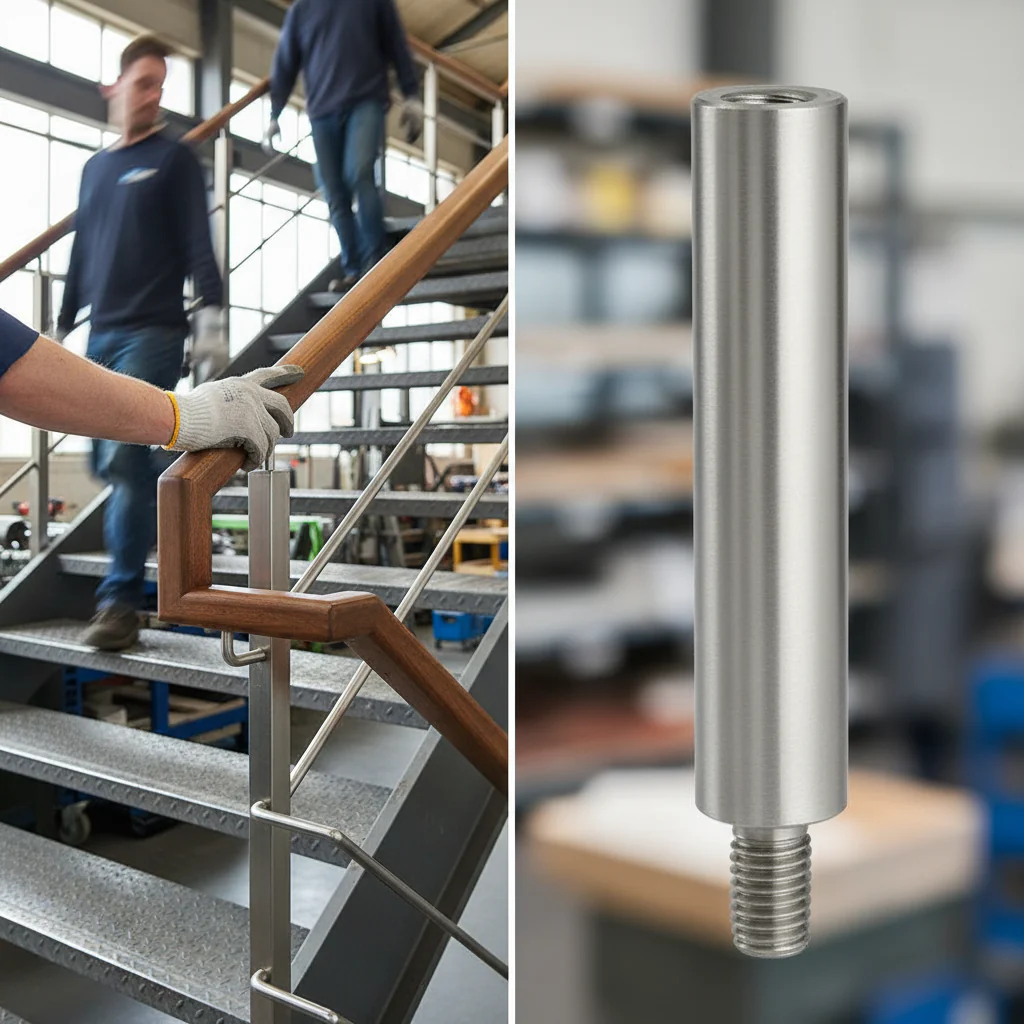

Premium Straight Handrail Support Pin 14mm Diameter with M8 and M6 Threads for Secure Connections

Product Description

The Premium Straight Handrail Support Pin is designed with a 14mm diameter, ensuring a robust and reliable connection for various handrail applications. This support pin features both M8 and M6 threads, allowing for versatile connectivity options.

Features

• 14mm diameter for a secure fit
• M8 thread for connecting to tube end caps
• M6 thread for connecting to handrail support plates or for welding to handrail tubes

Technical Specifications

Specification	Measurement
Diameter	14mm
M8 Thread	Yes
M6 Thread	Yes
Weight	0.08 kg
Length	68.0mm
Width	14.0mm
Depth	14.0mm
Material	304 Stainless Steel
Material finish	Satin

Applications

This handrail support pin is ideal for various applications including:

• Commercial and residential handrails
• Support structures in staircases
• Welding applications for custom handrail solutions

FAQ

Q: What is the diameter of the support pin?

A: The support pin has a diameter of 14mm.

Q: What types of threads are available on this pin?

A: It features both M8 and M6 threads for versatile connectivity.

Q: Can this pin be welded?

A: Yes, the M6 thread allows for welding directly to handrail tubes.
