Professional Side Vertical Wall Support Fixing for 48.3mm Tube - Heavy Duty Connection Solution

Product Overview

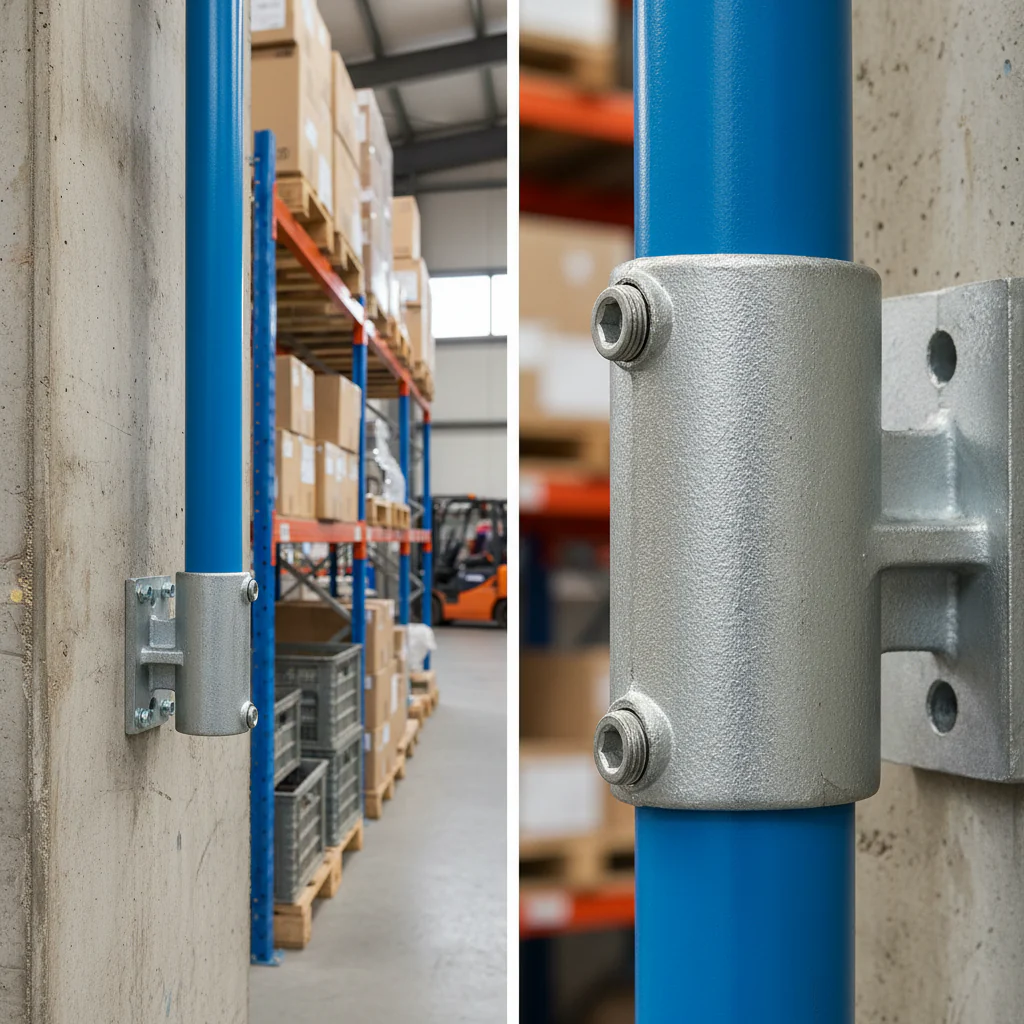

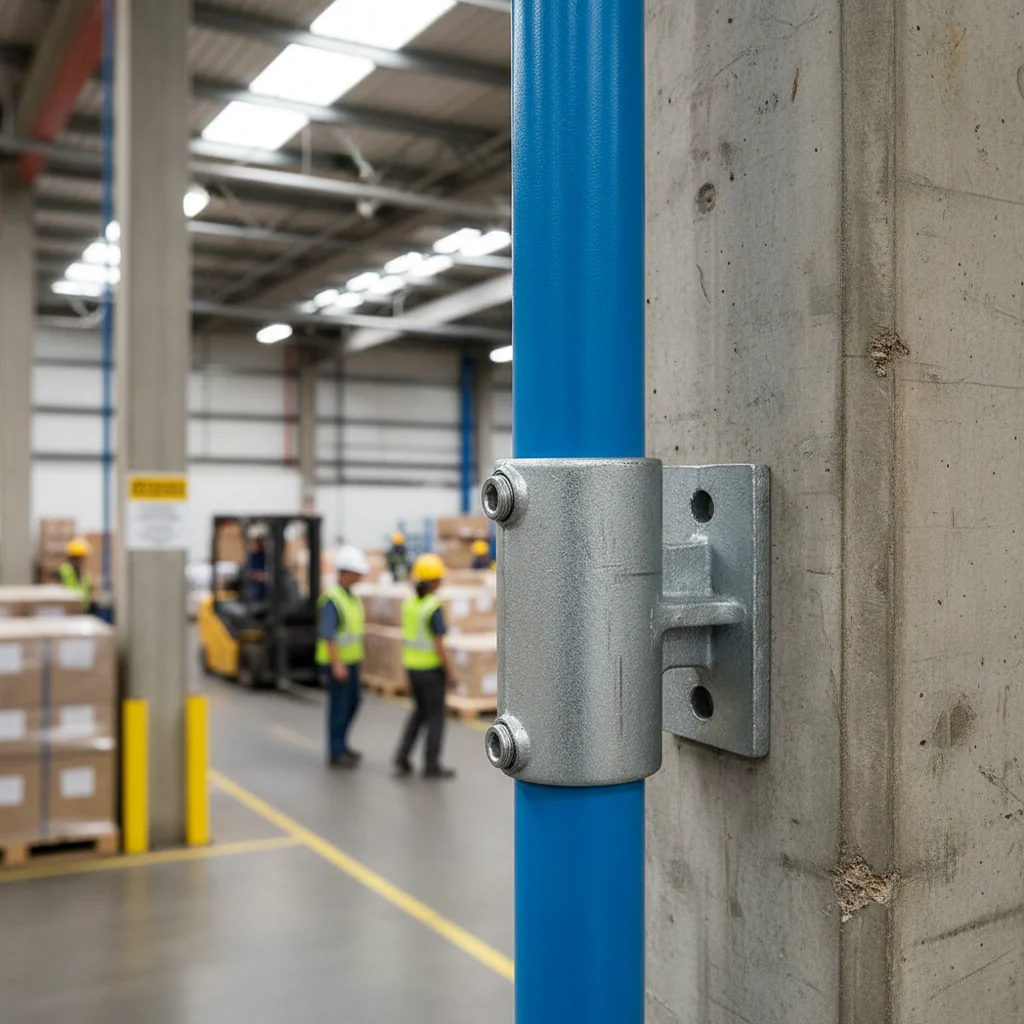

The Professional Side Vertical Wall Support Fixing is designed specifically for 48.3mm tubes, providing a reliable and sturdy solution for attaching uprights to walls. This fixing method ensures that the tube does not pass through the bottom of the fitting, enhancing its stability and security.

Key Features

• Compatible with 48.3mm tubes for easy installation.
• Designed to securely attach uprights to walls.
• The fitting prevents the tube from passing through the bottom, ensuring a strong hold.

Benefits

• Improves overall structural integrity by providing a solid connection.
• Easy to install and suitable for various applications.
• Enhances safety by ensuring the stability of vertical uprights.

Applications

This wall support fixing is typically used in construction and industrial settings where vertical supports need to be securely attached to walls. It is ideal for scaffolding, racking systems, and other applications that require robust support structures.

Technical Specifications

Specification	Measurement
Tube Compatibility	48.3mm
Weight	1.3 kg
Length	120.0mm
Width	115.0mm
Depth	85.0mm
Material	Malleable Iron
Material finish	Galvanised

FAQ

1. What is the maximum load this fixing can support?

The load capacity will depend on the installation method and materials used; it is recommended to consult installation guidelines for specific applications.

2. Can this fixing be used outdoors?

Yes, the fixing can be used outdoors, but ensure it is installed properly to withstand environmental conditions.

3. Is this fixing suitable for all wall types?

This fixing is designed for a variety of wall types, but always verify the wall material compatibility before installation.
